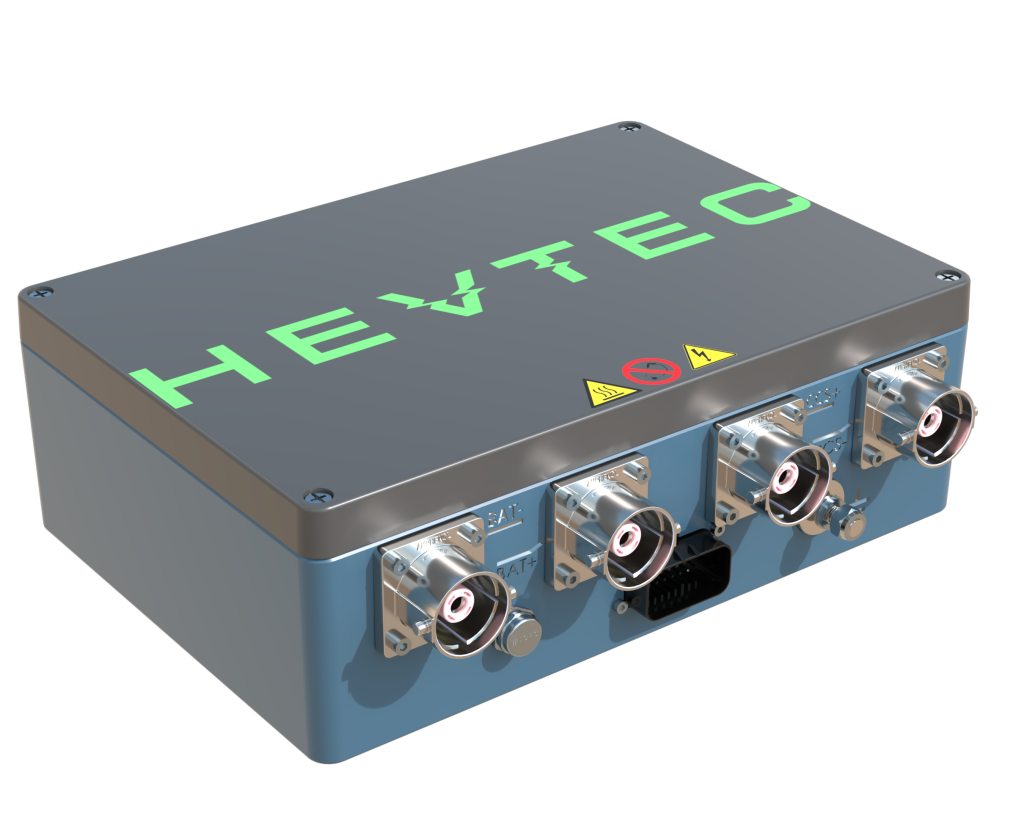

Hevtec PURO CCS Charging Interface
Specification
Connection type
Cable gland or PowerLok
System voltage
1000 Vdc
Current (cont. / 3 min)
500A / 700A
Supply voltage
12 V or 24 V
Ambient temperature
-40 – 85 °C
Protection class
IP66
Dimensions (L x W x H)
330 x 230 x 115 mm
Weight
7 kg
DC fast charging interface, CCS charging made easy for electric NRMM.
Cost efficient simplicity, only few optional features.
Designed for Electric Mobile Machinery, Proven in Practice
The next generation CCS charging interface, providing our cutting-edge technology to all businesses seeking innovative solutions.
Our A-Series Hevtec CCS charging interfaces have been successfully field-tested for several years in our partners’ electric mobile machines.
Optional Features
- HV connections with cable glands or optional HV connectors with HVIL
- Optional custom color
Puro – Smart Compatibility for Charging Control
Puro is widely compatible with various EVSE charging controllers and communicates seamlessly with both the charger and the vehicle, making it a vital part of the charging process.
We can deliver a suitable charging controller with seamless Puro integration as a straightforward plug-in solution for efficient electrification.
IEC 61851
CCS1, Combo 1
IEC 61851
CCS2, Combo 2
ISO 15118-2
(Communication to EVSE)
ISO 15118-20
(V2G, Bidirectional Power Transfer (BPT))
